Thread: Can You Help Identify This Wing Spar

  1. 12-31-2011, 03:41 PM #1
    corsair82pilot
    corsair82pilot is offline
    corsair82pilot's Avatar
    Join Date
    Nov 2011
    Location
    MD
    Posts
    13

    Question Can You Help Identify This Wing Spar

    I have some parts for a wing spar given to me by a friend. He didn't know what they were for.

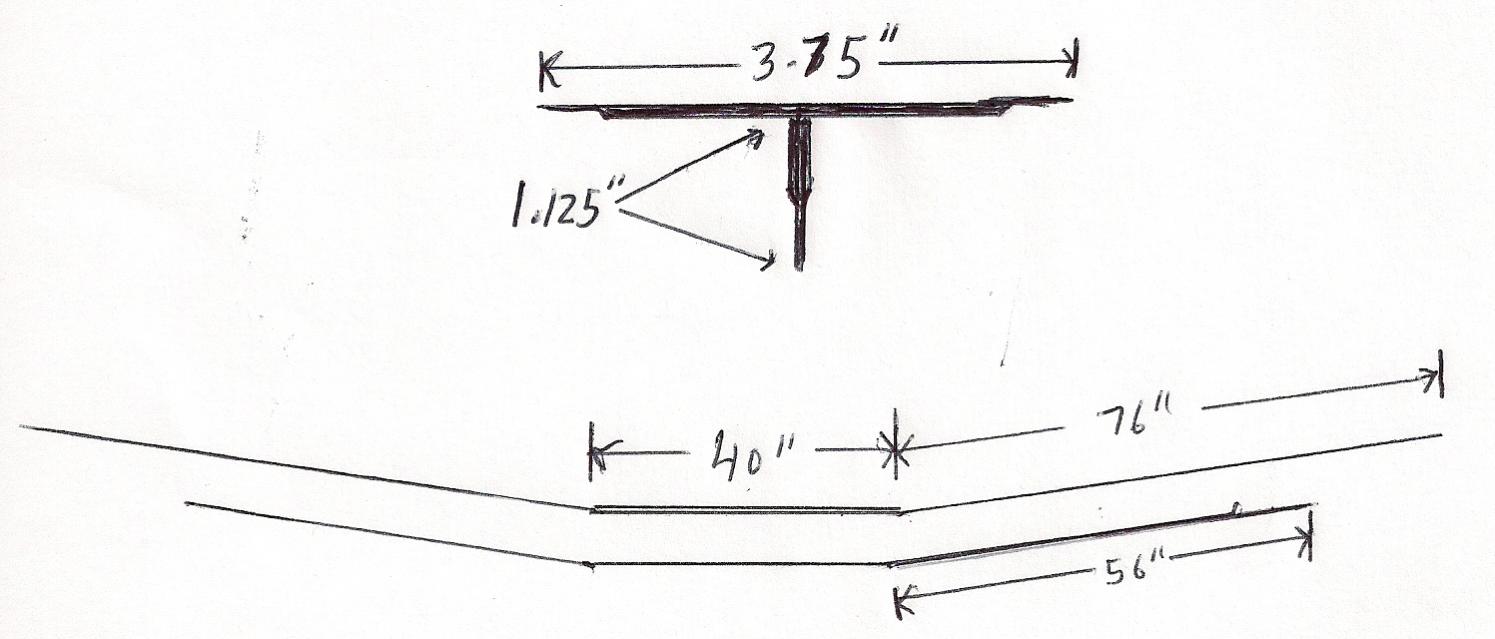

    This is a picture of the top and bottom center section caps. I don't have a web.
    They are made from aluminum T section.

    pics 06-29-11 011.JPG scan0001.jpg The dihedral is about 4 degrees.
    I also have two more caps that are 154" each. I assume they are to be used to make the spar for the outer wing panels. That gives about a 28" wing span, if my assumptions are right.
    There is also a box tube about the same length.
    Does anyone know what they are for?
    Last edited by corsair82pilot; 12-31-2011 at 03:45 PM.
    Reply With Quote Reply With Quote
  2. 01-07-2012, 12:11 PM #2
    corsair82pilot
    corsair82pilot is offline
    corsair82pilot's Avatar
    Join Date
    Nov 2011
    Location
    MD
    Posts
    13
    Can anyone use this spar? I don't need it.
