Page 9 of 23 FirstFirst ... 789101119 ... LastLast
Results 81 to 90 of 222

Thread: Airdrome Aeroplanes Nieuport 17

  1. #81
    bookmaker's Avatar
    Join Date
    Nov 2011
    Location
    Florida Panhandle
    Posts
    209
    Latest photo of progress on the hinge blocks.

    Name:  m_52.jpg
Views: 1981
Size:  12.7 KB
    Dale Cavin
    Florida Panhandle
    Current Project: Airdrome Aeroplanes Full Size Nieuport 17

  2. #82
    bookmaker's Avatar
    Join Date
    Nov 2011
    Location
    Florida Panhandle
    Posts
    209

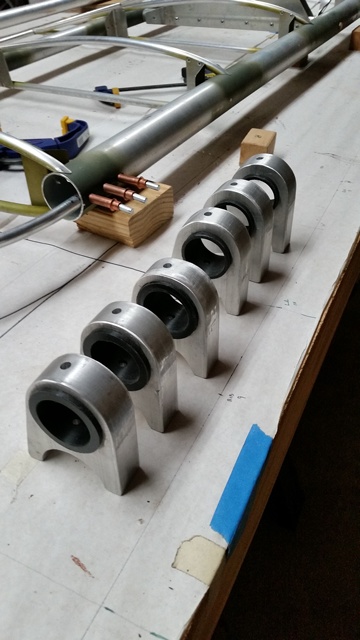

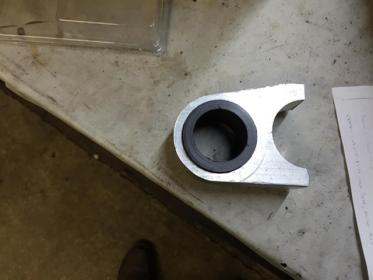

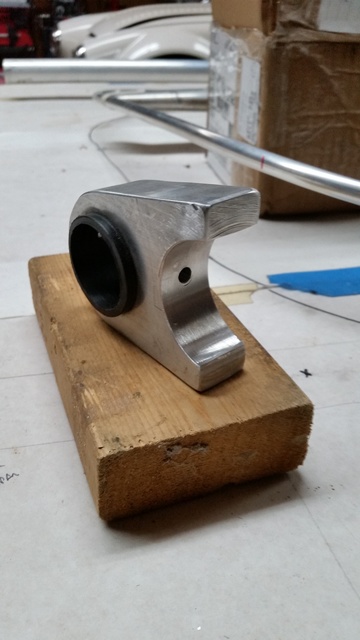

    I received the hinges from my dad.

    Name:  m_20160908_202909.jpg
Views: 1939
Size:  65.7 KB

    Name:  m_20160908_202854.jpg
Views: 1844
Size:  81.5 KB

    Name:  m_20160908_200635.jpg
Views: 1992
Size:  80.7 KB

    In case you are wondering, they weigh about 8.5 ounces each.

    The hole in the cutout will be threaded for a bolt that will be run through the rear spar.

    Dale
    Dale Cavin
    Florida Panhandle
    Current Project: Airdrome Aeroplanes Full Size Nieuport 17

  3. #83
    bookmaker's Avatar
    Join Date
    Nov 2011
    Location
    Florida Panhandle
    Posts
    209

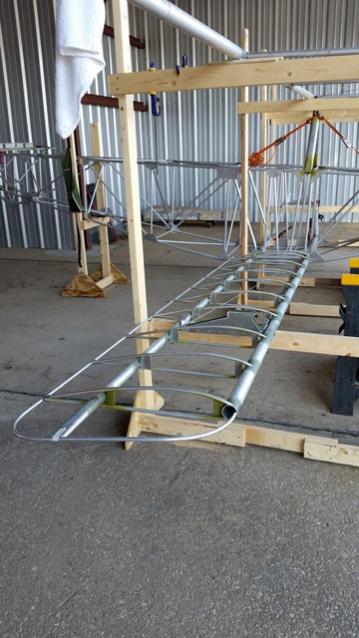

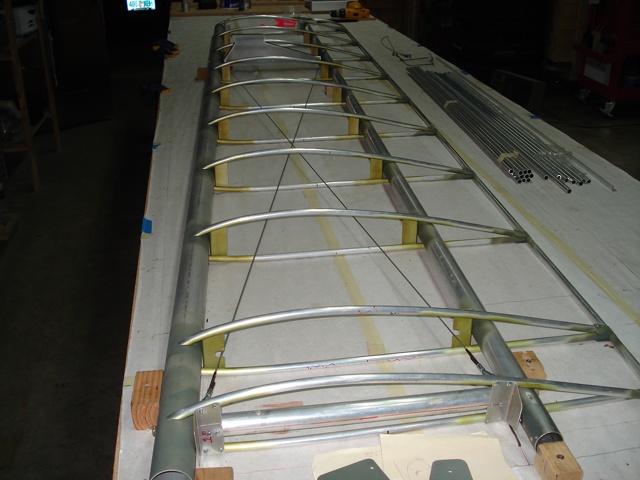

    First wing pretty much done with exception of root rib and leading edge sheet:

    (now it won't fit in my rigging jig)

    Name:  m_20160911_091735.jpg
Views: 1760
Size:  43.9 KB

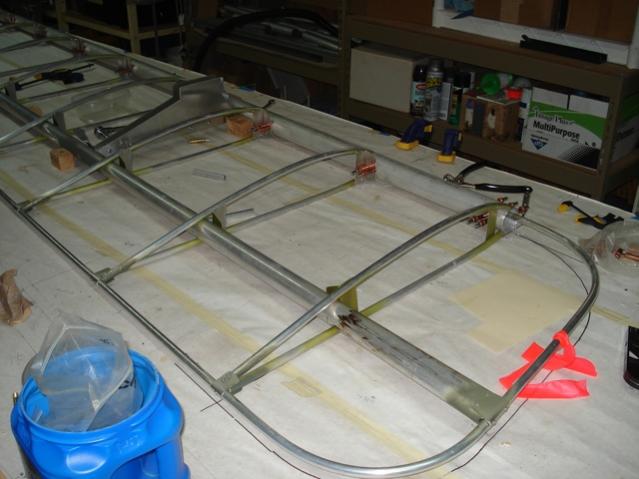

    Second lower wing coming along:

    Name:  m_DSC05264.jpg
Views: 1788
Size:  42.6 KB

    Dale
    Dale Cavin
    Florida Panhandle
    Current Project: Airdrome Aeroplanes Full Size Nieuport 17

  4. #84
    bookmaker's Avatar
    Join Date
    Nov 2011
    Location
    Florida Panhandle
    Posts
    209

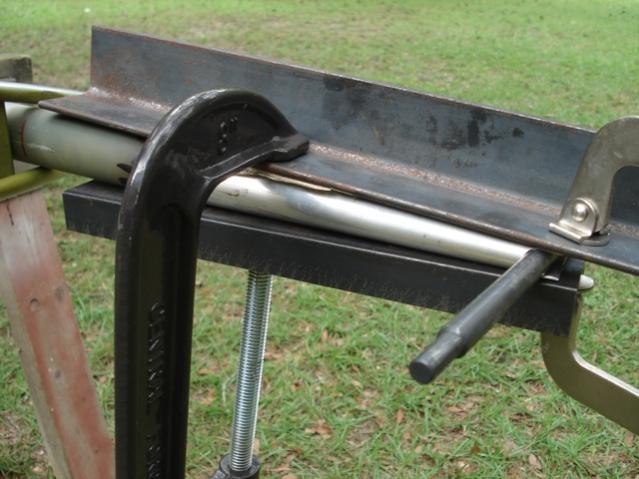

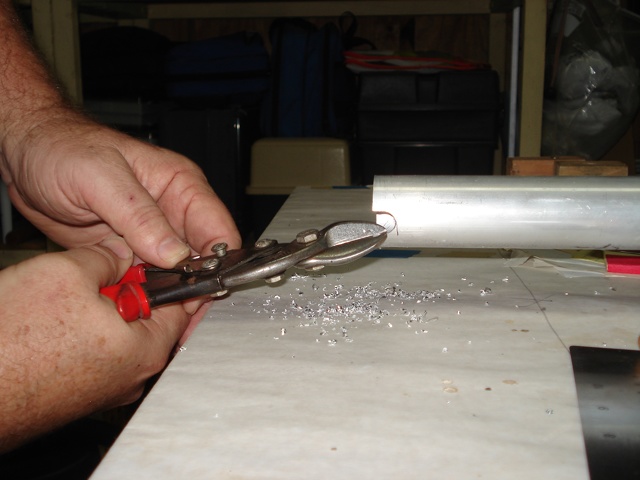

    Forming spar end for tip bow

    Name:  m_DSC05267.jpg
Views: 1951
Size:  93.4 KB

    Name:  m_DSC05268.jpg
Views: 1800
Size:  76.8 KB

    Name:  m_DSC05274.jpg
Views: 1892
Size:  78.3 KB

    Name:  m_DSC05282.jpg
Views: 1751
Size:  46.4 KB

    Getting help from Rosie the Riveter

    Name:  m_DSC05280.jpg
Views: 1720
Size:  41.1 KB

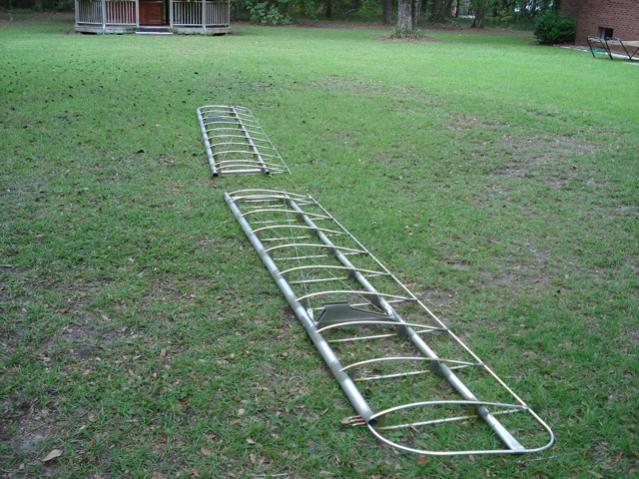

    Both lower wings framed up pending leading edge sheeting

    Name:  m_DSC05287.jpg
Views: 1854
Size:  65.2 KB
    Dale Cavin
    Florida Panhandle
    Current Project: Airdrome Aeroplanes Full Size Nieuport 17

  5. #85
    bookmaker's Avatar
    Join Date
    Nov 2011
    Location
    Florida Panhandle
    Posts
    209

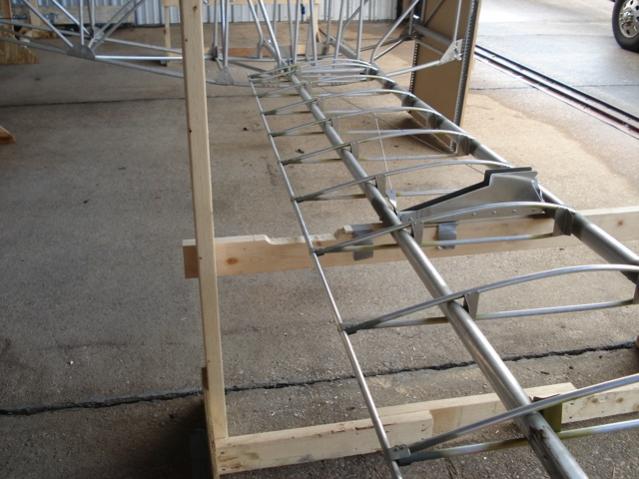

    Modifications were required to the rigging frames after trailing edges were added:

    Name:  m_DSC05292.jpg
Views: 1833
Size:  48.2 KB

    Name:  m_DSC05293.jpg
Views: 1767
Size:  45.9 KB

    After several hours fiddling, the first of 6 leading edge sheets is attached.

    Name:  m_DSC05296.jpg
Views: 1792
Size:  37.7 KB

    Dale
    Dale Cavin
    Florida Panhandle
    Current Project: Airdrome Aeroplanes Full Size Nieuport 17

  6. #86

    Join Date
    Aug 2011
    Location
    Alabama
    Posts
    2,236
    I see you went with the kit sheets of 6161-T6....and I am humbled by your work.

    I made a complete mess of them and just bit the bullet and bought some T6 leading edge material....and thankfully my covering job concealed most of my buggering it up.
    The opinions and statements of this poster are largely based on facts and portray a possible version of the actual events.

  7. #87
    bookmaker's Avatar
    Join Date
    Nov 2011
    Location
    Florida Panhandle
    Posts
    209
    I have to admit that when I actually worked for a living, I installed air conditioning so I have a fair bit of experience with sheet metal. However, that was steel and did not usually require the finesse the thin aluminum does.
    Dale Cavin
    Florida Panhandle
    Current Project: Airdrome Aeroplanes Full Size Nieuport 17

  8. #88
    bookmaker's Avatar
    Join Date
    Nov 2011
    Location
    Florida Panhandle
    Posts
    209
    Due to problems forming the sheet around the leading edge, and not being pleased with the sheet anyway, I scrapped that plan and started with false ribs.

    Name:  m_DSC05301.jpg
Views: 1772
Size:  37.4 KB

    My son Rob was in for a few days and helped out forming, drilling and riveting.

    Name:  m_DSC05302.jpg
Views: 1603
Size:  42.0 KB

    We got most of the false ribs on one lower wing.

    Name:  m_DSC05303.jpg
Views: 1666
Size:  40.5 KB

    Unfortunately, due to drilling 20 holes in the leading edge of the other lower wing, I have to change out that leading edge tube. A major rebuild of the wing structure.

    Dale
    Dale Cavin
    Florida Panhandle
    Current Project: Airdrome Aeroplanes Full Size Nieuport 17

  9. #89

    Join Date
    Aug 2011
    Location
    Alabama
    Posts
    2,236
    Ooooh, she's starting to really come together!
    The opinions and statements of this poster are largely based on facts and portray a possible version of the actual events.

  10. #90
    bookmaker's Avatar
    Join Date
    Nov 2011
    Location
    Florida Panhandle
    Posts
    209

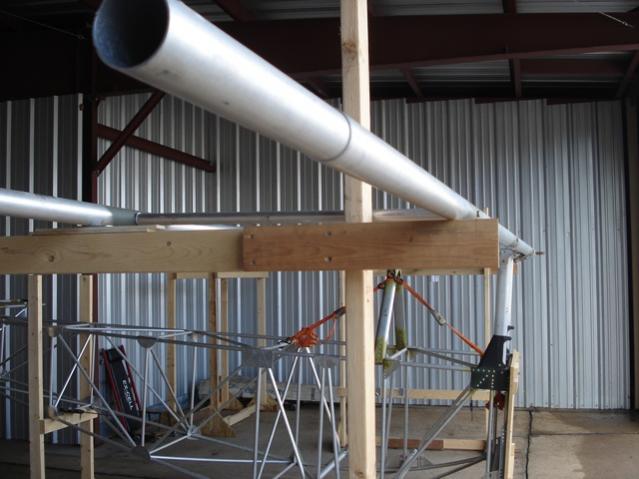

    I made the trip to Aircraft Spruce to pick up the 11' tube for the replacement leading edge, then removed the one I drilled full of holes.

    Name:  m_20161113_151057.jpg
Views: 1636
Size:  76.5 KB

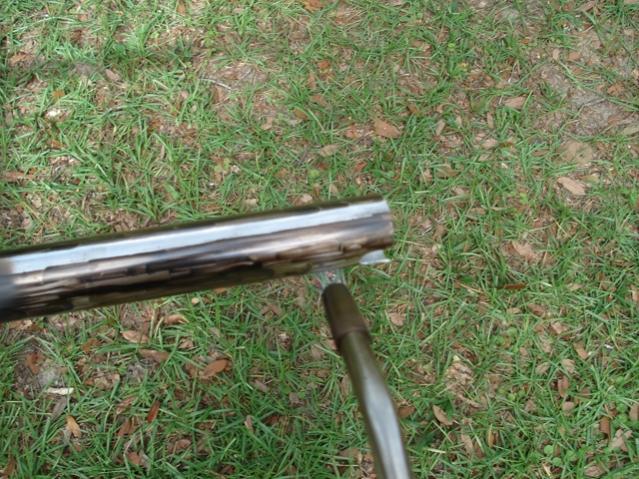

    I needed to match the angle of the root cut for dihedral and sweep, so I made a pattern of the old tube.

    Name:  m_DSC05306.jpg
Views: 1699
Size:  74.5 KB

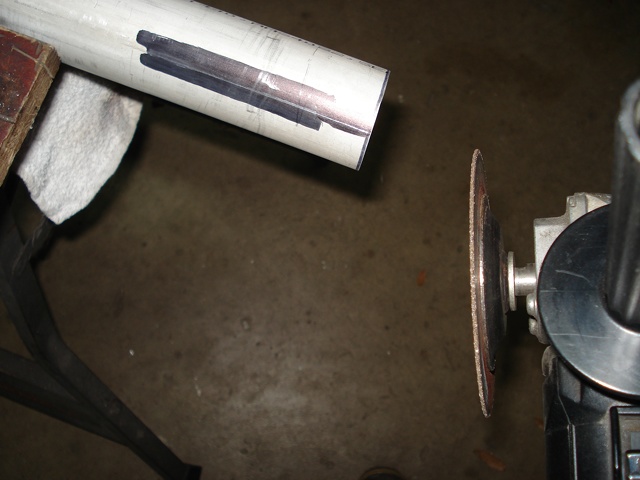

    After marking the new tube, I cut it with an angle grinder with cut off wheel.

    Name:  m_DSC05311.jpg
Views: 1740
Size:  77.9 KB

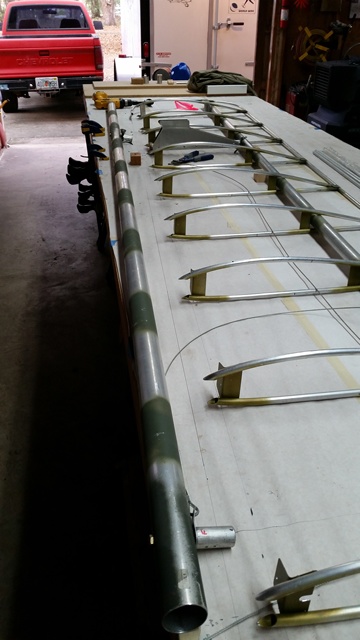

    With the root end at the correct angle, I carefully measured the location for the compression strut bolt holes and rivet locations for the rib attach plates.


    All fit together with clecos.

    Name:  m_DSC05315.jpg
Views: 1590
Size:  38.7 KB

    Name:  m_DSC05316.jpg
Views: 1669
Size:  41.1 KB

    I took it apart, primed the areas where parts connect then reassembled and riveted it together. This evening I reattached the internal cables.

    Name:  m_DSC05335.jpg
Views: 1635
Size:  94.5 KB

    Now I am officially where I was with this wing a month ago.

    Time to start forming false ribs.

    Dale
    Dale Cavin
    Florida Panhandle
    Current Project: Airdrome Aeroplanes Full Size Nieuport 17
