Request for 3-views
When not flying, I enjoy working in my shop, and thought some airplanes would make nice decorations for our Christmas party. No, I don't have enough time to track down and build balsa-and-tissue models, but I can probably bandsaw a few out of scrap lumber and paint them up.
To do this, I need scale drawings of airplanes. I only have the one from my Owner's Manual, and the one of the 172 that I took lessons in. Ideally I could finish several for this year's party, then add to the collection each year. To represent the planes at our airport, these will keep me busy for a couple of years:
-Piper J-3, Cherokee 140/180
-Cessna 182 [square tail & modern]
-Cessna 172 square tail [I have the modern drawing]
-Bonanza [F33 & A36; no V-tails around]
-Stearman
-Lanceair IV
-Pitts [any model]
-Grumman Cheetah/Tiger
-Aeronca Champ
-anything else interesting

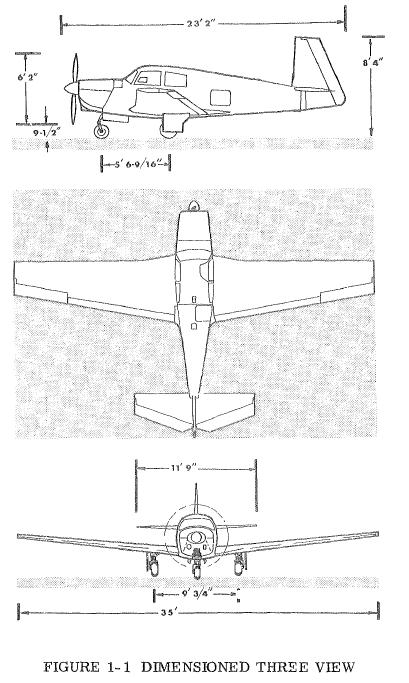

Yes, I've tried the various model airplane sites [I'm a life member of AMA] without success. To get the ball rolling, I am attaching the relevant page from my own plane.
Thank you all for your help.
