Thread: Landing gear wheel removal help

  1. #1

    Join Date
    Nov 2017
    Posts
    2

    Landing gear wheel removal help

    Hello all,

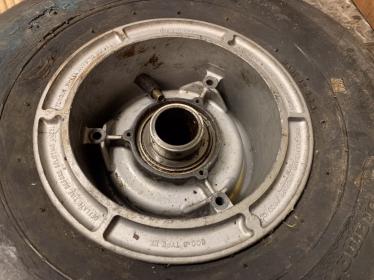

    I purchased a project and have had a heck of a time trying to get the wheel off the axle of the main landing gear. Iíve removed the bolts and removed the cotter pin that went through the wheel hub and axle. I donít see a main lug bolt or anything in the center but I canít get the thing to budge. Any suggestions on what I may be missing? (Image attached) Thanks!
    Name:  BCCA3DCF-6CAD-4B73-B43B-1A62026A5E4D.jpg
Views: 435
Size:  20.3 KB

  2. #2

    Join Date
    Jul 2011
    Location
    Justin, Texas
    Posts
    158
    The outer collar on the axle screws off....it's the retaining nut. BTW, before you EVER remove bolts from a wheel assembly, make absolutely sure the tire or tube is completely depressurized. The three bolts you removed from the larger diameter within the wheel body are the ones that hold the wheel halves together.

  3. #3

    Join Date
    Nov 2017
    Posts
    2
    Great info, thanks Craig!

  4. #4
    rwanttaja's Avatar
    Join Date
    Jul 2011
    Location
    Seattle
    Posts
    2,522
    Can you post a photo of the other side, too? And do you know what make that wheel is? Used to have Goodyears on my Fly Baby, and they took some special tricks to get things separated, depending on whether the brake disk was still meshed.

    Ron Wanttaja

  5. #5

    Join Date
    Jul 2011
    Location
    Justin, Texas
    Posts
    158
    For s's and g's., I found this video for your consumption on tire inflation failure and the forces that are involved. Granted, these are tires for jets and the pressures are 3 to 10 times higher, but the failures are the same, only slightly different energy levels. Be safe.

    https://www.youtube.com/watch?v=4gBHoeB1vfk

  6. #6

    Join Date
    Sep 2011
    Posts
    155
    I assume you separated the disc from the wheel hub on back side? Matcos usually have 3 screws safety wired to disc that have to come out.
